PSTAT 10 Data Science Principles

Lecture 15: Aliasing and Logicals

John Robin Inston

johninston@ucsb.edu

University of California, Santa Barbara

September 1, 2026

Introduction

🔁 Review: Lecture 14

👈 Last lecture we looked at:

Relational databases
- Data structure
- Data integrity
- Data manipulation
Database connections
Basic SQL queries

👀 Outline: Lecture 15

👇 Today we will emphasize querying and modifying data:

Complex data selections
SQL functions
SQL syntax and convention

Chinook Database

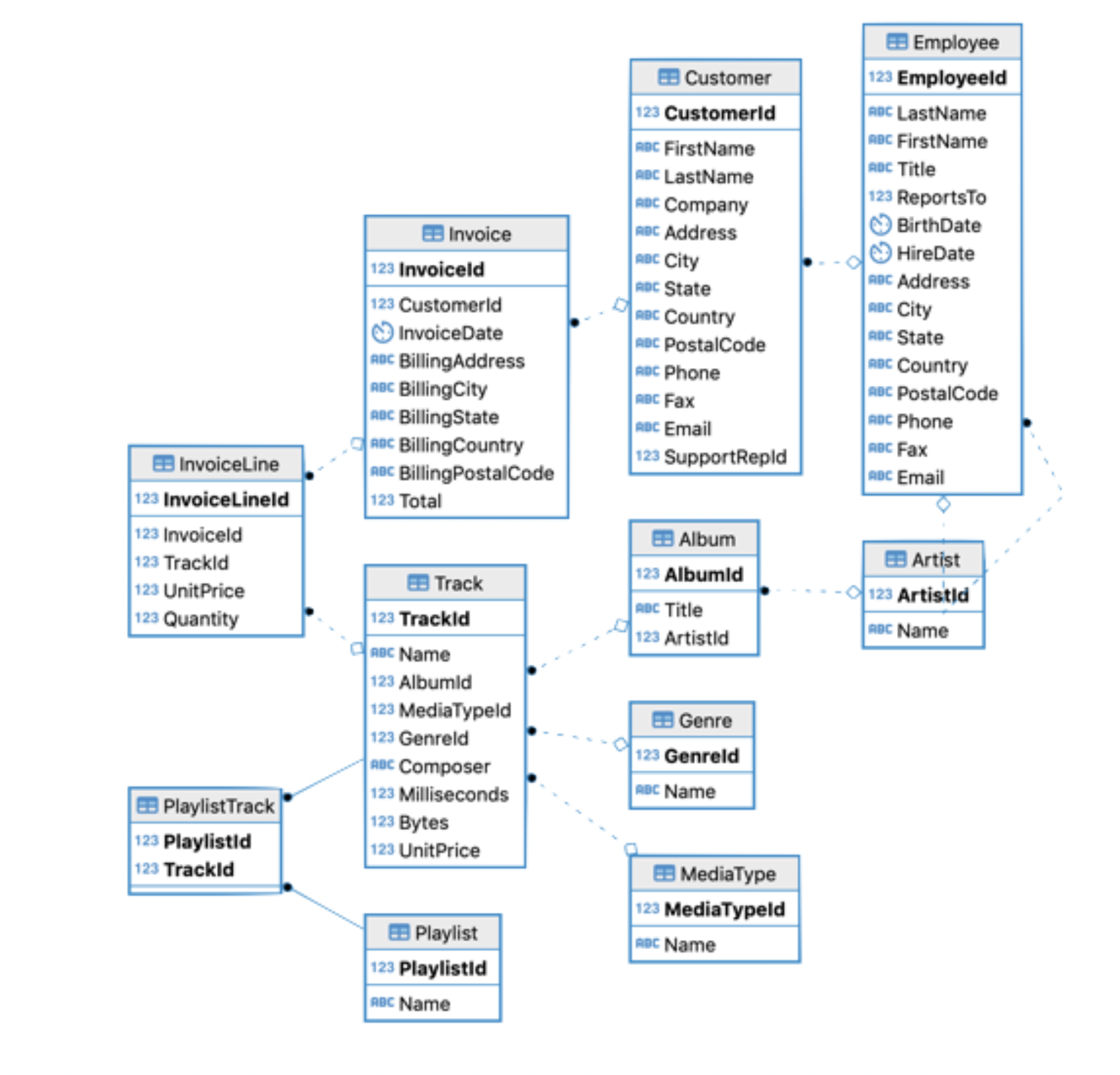

🕸️ Relation Network

We will continue working with the Chinook database with structure:

Each arrow represents a foreign-key relationship — it shows how a column in one table references the primary key of another, letting us connect data across tables.

🔌 Connecting

Last time we learned how to connect to an external database. Make sure you have the appropriate libraries loaded.

library(DBI)
library(RSQLite)
library(sqldf)
library(tidyverse)

Then create an appropriate database object:

chinook_db <- dbConnect(
    SQLite(),
    "data/Chinook_Sqlite.sqlite"
)

📌 Things to watch out for:

If you do not have an appropriate file path pointing to the .sqlite file, R will populate an empty database object.
If you wish to avoid working with file paths, place the .sqlite file in your current working directory.

📝 SQL Query Structure

Recall our basic SQL query from last lecture that had the following structure:

SELECT attributes
FROM relations
WHERE conditions

We also saw the INSERT and LIMIT arguments in these SQL queries.

chinook_db |>
  dbGetQuery(
    "SELECT InvoiceId, BillingCity
    FROM Invoice
    LIMIT 5"
  )

  InvoiceId BillingCity
1         1   Stuttgart
2         2        Oslo
3         3    Brussels
4         4    Edmonton
5         5      Boston

Here is a second example using WHERE and a different relation:

chinook_db |>
  dbGetQuery(
    "SELECT Name, AlbumId, GenreId
    FROM Track
    WHERE AlbumId = 3 AND GenreId = 1"
  )

                  Name AlbumId GenreId
1      Fast As a Shark       3       1
2    Restless and Wild       3       1
3 Princess of the Dawn       3       1

🔍 Specialized Selection

Suppose we wanted to select all attributes of the invoice table.

chinook_db |>
  dbListFields("invoice")

[1] "InvoiceId"         "CustomerId"        "InvoiceDate"
[4] "BillingAddress"    "BillingCity"       "BillingState"
[7] "BillingCountry"    "BillingPostalCode" "Total"

‼️ This is going to be a hefty query — but we know how to write it!

⭐ Selecting All Attributes

📋 Too Many Attributes

Written out in full we have:

chinook_db |> dbGetQuery(
  "SELECT InvoiceId, CustomerId, InvoiceDate,
   BillingAddress, BillingCity, BillingState,
   BillingCountry, BillingPostalCode, Total
   FROM invoice
   LIMIT 2"
)

  InvoiceId CustomerId         InvoiceDate          BillingAddress BillingCity
1         1          2 2009-01-01 00:00:00 Theodor-Heuss-Straße 34   Stuttgart
2         2          4 2009-01-02 00:00:00        Ullevålsveien 14        Oslo
  BillingState BillingCountry BillingPostalCode Total
1         <NA>        Germany             70174  1.98
2         <NA>         Norway              0171  3.96

`*` Syntax

Instead, to select all attributes we can use the * symbol:

chinook_db |> dbGetQuery(
  "SELECT *
  FROM Invoice
  LIMIT 2"
)

  InvoiceId CustomerId         InvoiceDate          BillingAddress BillingCity
1         1          2 2009-01-01 00:00:00 Theodor-Heuss-Straße 34   Stuttgart
2         2          4 2009-01-02 00:00:00        Ullevålsveien 14        Oslo
  BillingState BillingCountry BillingPostalCode Total
1         <NA>        Germany             70174  1.98
2         <NA>         Norway              0171  3.96

📌 When in doubt, keep your queries simple! 👍

🔗 Combining SQL and R

Using `select()`

Sometimes it may be helpful to combine functionality across different languages:

Load tidyverse if you have not already done so; and
Load sqldf if you have not already done so.

chinook_db |>
  dbGetQuery(
    "SELECT *
    FROM Invoice"
  ) |>
    select(InvoiceId, BillingCity, Total) |>
    str()

'data.frame':   412 obs. of  3 variables:
 $ InvoiceId  : int  1 2 3 4 5 6 7 8 9 10 ...
 $ BillingCity: chr  "Stuttgart" "Oslo" "Brussels" "Edmonton" ...
 $ Total      : num  1.98 3.96 5.94 8.91 13.86 ...

Remember, dbGetQuery() returns the query result as a dataframe:

Here we piped the select() function to select columns.
Then we used the structure str() function to examine our results.

🔍 Querying Data

We have used `WHERE` before…

The syntax WHERE allows us to work with logicals. Make sure to think carefully about the logic you are trying to implement.

chinook_db |> dbGetQuery(
  "SELECT BillingCity, BillingCountry, Total
   FROM Invoice WHERE Total > 20"
)

  BillingCity BillingCountry Total
1    Budapest        Hungary 21.86
2      Dublin        Ireland 21.86
3  Fort Worth            USA 23.86
4      Prague Czech Republic 25.86

🔀 Logicals in SQL

The syntax AND and OR allow us to select intersections and unions respectively:

chinook_db |> dbGetQuery(
  "SELECT BillingCity, BillingCountry, Total
   FROM Invoice
   WHERE Total > 20 AND BillingCity = 'Budapest'"
)

  BillingCity BillingCountry Total
1    Budapest        Hungary 21.86

chinook_db |> dbGetQuery(
  "SELECT BillingCity, BillingCountry, Total
   FROM Invoice
   WHERE Total > 20 OR BillingCountry = 'Italy'
   LIMIT 3"
)

  BillingCity BillingCountry Total
1        Rome          Italy  1.98
2        Rome          Italy  3.96
3    Budapest        Hungary 21.86

🔀 Combining Logicals

Combine clauses similarly to combining R logical expressions.

chinook_db |> dbGetQuery(
  "SELECT BillingCity, BillingCountry, Total
   FROM Invoice
   WHERE Total > 20 OR BillingCountry = 'Italy'
   AND BillingCity = 'Rome'
   LIMIT 4"
)

  BillingCity BillingCountry Total
1        Rome          Italy  1.98
2        Rome          Italy  3.96
3    Budapest        Hungary 21.86
4        Rome          Italy  5.94

This query returns all invoices with a total greater than 20, or all invoices from Italy where the billing city is Rome.
- Notice the order of operations — AND is evaluated before OR.

chinook_db |> dbGetQuery(
  "SELECT BillingCity, BillingCountry, Total
   FROM Invoice
   WHERE (Total > 20 OR BillingCountry = 'Italy')
   AND BillingCity = 'Rome'
   LIMIT 6"
)

  BillingCity BillingCountry Total
1        Rome          Italy  1.98
2        Rome          Italy  3.96
3        Rome          Italy  5.94
4        Rome          Italy  0.99
5        Rome          Italy  1.98
6        Rome          Italy 13.86

With the parentheses, the query returns all invoices from Rome where the total is greater than 20 or the billing country is Italy.

🚫 Exclusion

Sometimes we wish to exclude specific values. Suppose we wanted all invoices where the total is NOT .99:

chinook_db |>
  dbGetQuery(
  "SELECT BillingCity, BillingCountry, Total
   FROM Invoice
   WHERE NOT Total = .99
   LIMIT 5"
)

  BillingCity BillingCountry Total
1   Stuttgart        Germany  1.98
2        Oslo         Norway  3.96
3    Brussels        Belgium  5.94
4    Edmonton         Canada  8.91
5      Boston            USA 13.86

This NOT syntax is very powerful when combined with the AND, OR commands.

dbGetQuery(
  chinook_db,
  "SELECT BillingCity, BillingCountry, Total
   FROM Invoice
   WHERE BillingCountry = 'USA'
   LIMIT 3"
  )

    BillingCity BillingCountry Total
1        Boston            USA 13.86
2 Mountain View            USA  0.99
3       Redmond            USA  1.98

dbGetQuery(
  chinook_db,
  "SELECT BillingCity, BillingCountry, Total
   FROM Invoice
   WHERE BillingCountry = 'USA'
    AND NOT BillingCity = 'Boston'
   LIMIT 3"
)

    BillingCity BillingCountry Total
1 Mountain View            USA  0.99
2       Redmond            USA  1.98
3     Cupertino            USA  1.98

🗣️ Logical Syntax

SQL tries to closely mimic human language:

AND, OR, NOT used rather than &, |, !
The NOT (negated clause) operator breaks (English) language convention slightly. SQL also allows the <> operator to mean not equal:

dbGetQuery(chinook_db,
  "SELECT BillingCity, BillingCountry, Total
   FROM Invoice
   WHERE BillingCountry = 'USA'
    AND BillingCity <> 'Boston'
   LIMIT 1"
)

    BillingCity BillingCountry Total
1 Mountain View            USA  0.99

📌 The syntax != does work in SQLite but not universally. Please use the <> convention whenever possible.

💪 Exercise — Involved Queries

04:00

Write and execute a SQL query that retrieves the InvoiceId, InvoiceDate, BillingCity, BillingState and Total for all invoices of customers based in the United States who spent between $15 and $20.

✅ Solution — Involved Queries

dbGetQuery(
  chinook_db,
  "SELECT InvoiceId, InvoiceDate, BillingCity, BillingState, Total
   FROM Invoice
   WHERE BillingCountry = 'USA'
   AND Total >= 15 AND Total <= 20"
)

  InvoiceId         InvoiceDate BillingCity BillingState Total
1       103 2010-03-21 00:00:00     Chicago           IL 15.86
2       201 2011-05-29 00:00:00     Madison           WI 18.86

This query works, i.e. it returns the desired values — but:

We want to make queries as simple as possible.
Use available functionality — BETWEEN is helpful.

✅ Better Solution — Involved Queries

A better solution uses BETWEEN:

chinook_db |> dbGetQuery(
  "SELECT InvoiceId, InvoiceDate, BillingCity, BillingState, Total
   FROM Invoice
   WHERE BillingCountry = 'USA'
   AND Total BETWEEN 15 AND 20"
)

  InvoiceId         InvoiceDate BillingCity BillingState Total
1       103 2010-03-21 00:00:00     Chicago           IL 15.86
2       201 2011-05-29 00:00:00     Madison           WI 18.86

Why is this better?

BETWEEN is inclusive of both bounds — equivalent to >= 15 AND <= 20.
It replaces two comparisons with a single clause.
It reads almost exactly like the prompt: “between $15 and $20”.

🔎 Table Exploration

It is often useful to know which attribute values exist in a table.

SELECT DISTINCT allows us to pick only unique values.

chinook_db |>
dbGetQuery(
  "SELECT DISTINCT BillingCountry
  FROM Invoice
  LIMIT 5"
)

  BillingCountry
1        Germany
2         Norway
3        Belgium
4         Canada
5            USA

🔎 Distinct Combinations

Combining attribute values looks for distinct combinations.

dbGetQuery(
  chinook_db,
  "SELECT DISTINCT BillingCountry,
     BillingState
   FROM Invoice
   LIMIT 5"
)

  BillingCountry BillingState
1        Germany         <NA>
2         Norway         <NA>
3        Belgium         <NA>
4         Canada           AB
5            USA           MA

🔢 Counting and Ordering

Counting Unique Values

Sometimes we wish to know the number of unique values using the syntax COUNT:

chinook_db |> dbGetQuery(
    "SELECT COUNT(DISTINCT BillingCountry)
    FROM Invoice"
)

  COUNT(DISTINCT BillingCountry)
1                             24

COUNT can also be used independently of DISTINCT:

chinook_db |> dbGetQuery(
  "SELECT COUNT(*)
  FROM Invoice"
)

  COUNT(*)
1      412

🔃 Ordering Values

Suppose we want to see the invoice totals ordered from minimum to maximum. We can use the ORDER BY query.

chinook_db |> dbGetQuery(
  "SELECT BillingCountry, BillingCity, Total
  FROM Invoice
  ORDER BY Total
  LIMIT 3"
)

  BillingCountry   BillingCity Total
1        Germany     Frankfurt  0.99
2            USA Mountain View  0.99
3 United Kingdom    Edinburgh   0.99

🔃 Descending Order, Minimum and Maximum

Sorting in Descending Order

To sort in descending order we would write:

chinook_db |>
dbGetQuery(
  "SELECT BillingCountry, BillingCity, Total
  FROM Invoice
  ORDER BY Total DESC
  LIMIT 6"
)

  BillingCountry BillingCity Total
1 Czech Republic      Prague 25.86
2            USA  Fort Worth 23.86
3        Hungary    Budapest 21.86
4        Ireland      Dublin 21.86
5        Austria      Vienne 18.86
6            USA     Madison 18.86

📉 `MIN()` and `MAX()` Functions

The MIN() and MAX() functions isolate the smallest and largest values:

chinook_db |> dbGetQuery(
  "SELECT BillingCountry, BillingCity, MIN(Total)
  FROM Invoice"
)

  BillingCountry BillingCity MIN(Total)
1        Germany   Frankfurt       0.99

dbGetQuery(
  chinook_db,
  "SELECT BillingCountry, BillingCity, MAX(Total)
  FROM Invoice"
)

  BillingCountry BillingCity MAX(Total)
1 Czech Republic      Prague      25.86

📌 Note the behavior in the case of ties.

💪 Exercise — Multifaceted Queries

05:00

Write and execute an SQL query that:

Pulls the TrackId, Name, AlbumId, GenreId attributes of Track.
Only returns tracks between 200 and 300 seconds (200000 and 300000 milliseconds) long.
Only returns tracks between 2000000 and 5000000 bytes.
Returns tracks in descending order by price.
Prints no more than 5 rows to the console.

✅ Solution — Multifaceted Queries

dbGetQuery(
  chinook_db,
  "SELECT TrackId, Name, AlbumId, GenreId
  FROM Track
  WHERE Milliseconds BETWEEN 200000 AND 300000
    AND Bytes Between 2000000 AND 5000000
  ORDER BY UnitPrice DESC
  LIMIT 5"
)

  TrackId                  Name AlbumId GenreId
1       3       Fast As a Shark       3       1
2       4     Restless and Wild       3       1
3      93              Exploder      10       1
4      94             Hypnotize      10       1
5    1146 Welcome to the Jungle      90       1

Breaking it down:

Two BETWEEN filters joined with AND — one on duration (Milliseconds), one on size (Bytes).
ORDER BY UnitPrice DESC returns tracks in descending order by price.
LIMIT 5 caps the output at five rows.

🐛 Bug or Feature

Error messages are good. Odd returns are much worse!

Errors direct you to a specific problem.
Errors are google-able and often immediately fixable.

What’s happening here?

dbGetQuery(
  chinook_db,
  "SELECT 'ucsb'
  FROM Track
  WHERE AlbumId = 3"
)

  'ucsb'
1   ucsb
2   ucsb
3   ucsb

📌 This is not an error: - SELECT 'ucsb' returns the string literal 'ucsb' for every matched row. - SELECT can return more than just column values.

⭐ Understanding SELECT

`SELECT` is an incredibly flexible tool!

dbGetQuery(
  chinook_db,
  "SELECT Name, AlbumId FROM Track WHERE AlbumId = 3"
)
dbGetQuery(
  chinook_db,
  "SELECT 'ucsb', Name, AlbumId FROM Track WHERE AlbumId = 3"
)

                  Name AlbumId
1      Fast As a Shark       3
2    Restless and Wild       3
3 Princess of the Dawn       3

  'ucsb'                 Name AlbumId
1   ucsb      Fast As a Shark       3
2   ucsb    Restless and Wild       3
3   ucsb Princess of the Dawn       3

`SELECT` can also return computed values:

dbGetQuery(
  chinook_db,
  "SELECT 'ucsb', power(2, 5), Name FROM Track WHERE AlbumId = 3"
)
dbGetQuery(
  chinook_db,
  "SELECT Bytes / Milliseconds, Name FROM Track WHERE AlbumId = 3"
)

  'ucsb' power(2, 5)                 Name
1   ucsb          32      Fast As a Shark
2   ucsb          32    Restless and Wild
3   ucsb          32 Princess of the Dawn

  Bytes / Milliseconds                 Name
1                   17      Fast As a Shark
2                   17    Restless and Wild
3                   16 Princess of the Dawn

🏷️ Aliasing

Aliasing assigns a temporary name to a column (or table) that exists for the duration of the query only.

dbGetQuery(chinook_db,"SELECT Name AS Good_Music FROM Track LIMIT 2")

                               Good_Music
1 For Those About To Rock (We Salute You)
2                       Balls to the Wall

Aliasing does not change column names; they exist for the query only.
A table can also be aliased with the FROM table AS alias syntax.
Query-defined columns can also be aliased.
WHERE clauses can reference columns by alias.

🔍 Pattern Selection

Sometimes we don’t know quite what we’re looking for.

Real-world data is often messy.
Searching for exact matches often misses things.
Pattern matching lets us search for partial or approximate values.

SQLite gives us two pattern-matching operators:

LIKE — simple wildcards (%, _), case-insensitive.
GLOB — Unix-style wildcards (*, ?), case-sensitive.

📌 Reach for LIKE first — it is simpler and covers most cases. Use GLOB when you need case sensitivity or finer control.

🔍 `LIKE`

First Letter Selection

Selection based on first letter only:

dbGetQuery(
  chinook_db,
  "SELECT BillingCountry, BillingState, Total
   FROM Invoice
   WHERE BillingCountry LIKE 'u%'
   LIMIT 5"
)

  BillingCountry BillingState Total
1            USA           MA 13.86
2 United Kingdom         <NA>  8.91
3            USA           CA  0.99
4            USA           WA  1.98
5            USA           CA  1.98

🔍 `LIKE` — Intermediate Strings

Selection based on intermediate string:

dbGetQuery(
  chinook_db,
  "SELECT BillingCountry, BillingState, Total
  FROM Invoice
  WHERE BillingCountry LIKE '%an%'
  LIMIT 5"
)

  BillingCountry BillingState Total
1        Germany         <NA>  1.98
2         Canada           AB  8.91
3        Germany         <NA>  0.99
4        Germany         <NA>  1.98
5         France         <NA>  1.98

🔍 `GLOB` Precision

SQLite’s GLOB operator matches text values against a pattern using wildcards — * for any sequence of characters and ? for a single character.

GLOB allows further precision and refinement in these queries:

dbGetQuery(
  chinook_db,
  "SELECT TrackId, Name
  FROM Track
  WHERE Name GLOB '?ere*'
  LIMIT 5"
)

  TrackId                    Name
1     324                  Pererê
2    1132                Serenity
3    1452 Were Do We Go From Here
4    1740                  Sereia
5    2198                  Jeremy

💪 Exercise — Combining Techniques

05:00

Write and execute an SQL query that:

Retrieves the TrackId and Name of all tracks with AlbumId = 30.
Also retrieves the length of the song in seconds (ms/1000) in a column called Seconds.
Also retrieves the size of the song in megabytes ($1\text{MB} = 10^{-6}$ bytes) in a column called MB.
Lists the tracks in ascending order by length (seconds).
Only includes songs containing the word and in their names.

✅ Solution — Combining Techniques

dbGetQuery(
  chinook_db,
  "SELECT TrackId, Name, Milliseconds/1000 AS Seconds, Bytes*power(10, -6) AS MB
  FROM Track
  WHERE AlbumId = 30 AND Name LIKE '% and %'
  ORDER BY Seconds ASC")

  TrackId                        Name Seconds        MB
1     342 What is and Should Never Be     260  8.497116
2     340          Dazed and Confused     401 13.035765

Breaking it down:

We compute new columns inside SELECT with arithmetic and alias them — Milliseconds/1000 AS Seconds and Bytes*power(10, -6) AS MB.
LIKE '% and %' uses surrounding spaces to match the word “and”, not substrings like “land”.
ORDER BY Seconds ASC sorts by the alias we just defined.

🎨 Styling SQL

Much like R, SQL code works without proper styling.

It can be extremely tough to read.
SQL is designed for readability — don’t squander it!

Indentation should follow logical functions:

SELECT item_1, item_2, ... , item_k
FROM table_1 WHERE logical_1 AND OR logical_2 ... AND OR logical_m
ORDER BY order_1, ... , order_n ASC/DESC

📌 Specific indentation is subjective, but your focus should be to make your code as readable as possible.

Summary

✅ Topics Covered

🤔 This lecture covered many aspects of SQL code and syntax:

Logical operations with WHERE
Functionality associated with SELECT
Aliasing
Various other functions / operators (LIMIT, ORDER BY, *, etc.)

📌 In general you shouldn’t focus on memorizing syntax — instead focus on understanding it and using it to solve problems.

📅 Next Class

🤩 Next class we will almost entirely focus on two topics:

Aggregation (continuing from COUNT, MIN, MAX, etc.)
Joins

Then, in lectures 17 and 18, we will cover a selection of more advanced SQL topics:

Nested SELECT statements
Table creation and data insertion
Database design

PSTAT 10 Data Science Principles

Introduction

🔁 Review: Lecture 14

👀 Outline: Lecture 15

Chinook Database

🕸️ Relation Network

🔌 Connecting

📝 SQL Query Structure

🔍 Specialized Selection

⭐ Selecting All Attributes

📋 Too Many Attributes

* Syntax

🔗 Combining SQL and R

Using select()

🔍 Querying Data

We have used WHERE before…

🔀 Logicals in SQL

🔀 Combining Logicals

🚫 Exclusion

🗣️ Logical Syntax

💪 Exercise — Involved Queries

✅ Solution — Involved Queries

✅ Better Solution — Involved Queries

🔎 Table Exploration

🔎 Distinct Combinations

🔢 Counting and Ordering

Counting Unique Values

🔃 Ordering Values

🔃 Descending Order, Minimum and Maximum

Sorting in Descending Order

📉 MIN() and MAX() Functions

💪 Exercise — Multifaceted Queries

✅ Solution — Multifaceted Queries

🐛 Bug or Feature

⭐ Understanding SELECT

SELECT is an incredibly flexible tool!

SELECT can also return computed values:

🏷️ Aliasing

🔍 Pattern Selection

🔍 LIKE

First Letter Selection

🔍 LIKE — Intermediate Strings

🔍 GLOB Precision

💪 Exercise — Combining Techniques

✅ Solution — Combining Techniques

🎨 Styling SQL

Summary

✅ Topics Covered

📅 Next Class

`*` Syntax

Using `select()`

We have used `WHERE` before…

📉 `MIN()` and `MAX()` Functions

`SELECT` is an incredibly flexible tool!

`SELECT` can also return computed values:

🔍 `LIKE`

🔍 `LIKE` — Intermediate Strings

🔍 `GLOB` Precision
