PSTAT 10 Data Science Principles

Lecture 13: Databases

John Robin Inston
johninston@ucsb.edu

University of California, Santa Barbara

September 1, 2026

Introduction

🔁 Review: Lectures 9 – 12

🤔 This week we will move away from the language R and instead focus on SQL.

  • The following lectures will (explicitly) use minimal R.
  • It is still important to be comfortable with topics such as simulation, random variables and Monte Carlo methods.

📌 The bulk of the final exam will focus on the language R. Assignment 5 and the last labs will also use R.

👀 Outline: Lecture 13

👇 In today’s lecture we will introduce ourselves to larger, more complex database structures. We aim to answer the questions:

  • What is a database?
  • What is a relational database?
  • What is a database management system (DBMS)?

Furthermore we will cover the relational model, both the:

  • Structural portion; and
  • Integrity portion

Databases

🗄️ What is a Database?

A database is an organized collection of structured information, or data, typically stored electronically in a computer system.

  • Medical records
  • Bank accounts
  • Credit histories
  • Historical security prices
  • Census data
  • Airline schedules and bookings
  • Bus and train timetables
  • Student records
  • Customer purchasing histories
  • Medical trial data

📌 Essentially anything can be stored as a set of related data values.

🗄️ Why Do We Use Databases?

We have to when datasets get incredibly large.

For example, a standard Excel document can store roughly:

  • 1 million rows
  • 16000 columns

Most Excel documents however are much smaller, around 0.5MB to 1MB.

What happens if we are dealing with a very large dataset?

🗄️ Example — Why Do We Use Databases?

Consider the nycflights13 data from previous weeks.

library(nycflights13)
format(object.size(nycflights13::flights), units ="Mb")
[1] "38.8 Mb"

This is still a fairly small dataset. Really large datasets can be many (GB) or even (TB).

For example:

  • High-frequency securities data
  • Medical trials data
  • Advertising data

💾 Memory Usage

If we import a large dataset into R, then we are storing that data in our computer’s memory.

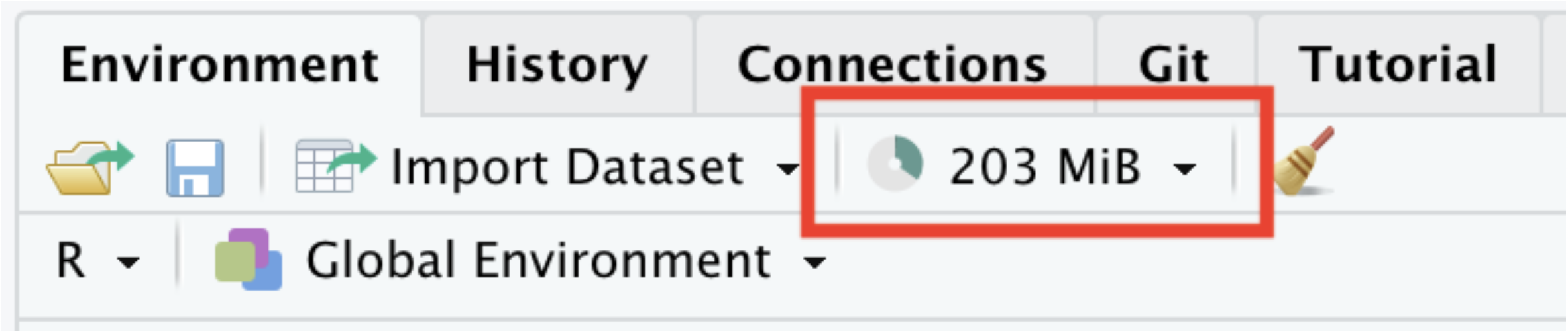

In our environment tab in RStudio we can see a read-out of the amount of memory we are currently using.

Memory usage in RStudio

📌 RStudio can only use so much memory before computer performance declines rapidly with high memory usage.

💪 Exercise — Available Memory

03:00
  1. Determine how much random access memory (RAM) your computer has.
    • For Macs go to Apple -> About This Mac -> Memory
    • For Windows go to Task Manager -> Performance -> Memory
  2. Determine how much memory R has available.
    • Explore ?gc.
    • Run gc() (results will vary!)

✅ Solution — Available Memory

My Mac has 1TB of storage and 16GB of RAM (which is starting to lag behind 2026 laptops now).

gc()
          used (Mb) gc trigger  (Mb) limit (Mb) max used  (Mb)
Ncells  726497 38.8    1363891  72.9         NA  1363891  72.9
Vcells 6437594 49.2   21341444 162.9      16384 17402905 132.8
  • The used columns report the memory R is currently occupying.
  • The max used columns report the peak usage so far this session.
  • Values are shown for both Ncells (objects) and Vcells (vectors/data).

📦 Too Much Data

The table below details several databases that are too large to load into R.

Large Data File Examples
File Number File Name Size
1 Diabetic Retinopathy Detection 82.2 GiB
2 American Epilepsy Society Seizure Prediction Challenge 59.6 GiB
3 Avito Duplicate Ads Detection 48.4 GiB
4 Microsoft Malware Classification Challenge (BIG 2015) 35.3 GiB
5 GE Flight Question 34.4 GiB

🗄️ Dealing with Big Data

Our approach:

  • Store the data on an external disk
  • Open a connection to the data
  • Load portions of the data into local memory as needed
  • The dataset stored on this disk is a database

📌 We only ever hold what we need in memory — the connection lets us query a database far larger than our RAM.

📖 Formal Definitions

We defined a database earlier as an organized collection of structured information, or data, typically stored electronically in a computer system.

Our databases will satisfy the following two traits:

  1. They will be machine-updatable (i.e. a collection of variables).
  2. They will be logically coherent (i.e. they will have some understandable organizational structure).

🖥️ Database Management Systems (DBMS)

We manage databases through Database Management Systems (DBMS).

There are four main types:

  • Hierarchical
  • Network Model
  • Relational Model
  • Object-Oriented Model

Broadly, we can classify DBMS into:

  1. Relational Database Management Systems (RDBMS); and
  2. Non-Relational Database Management Systems (NoSQL).

🖥️ Databases in PSTAT 10

In PSTAT 10 we will specifically work with Relational Databases.

  • The most common databases used in industrial settings.
  • Easy to interface with using structured query language (SQL).
  • Secure and very flexible design.
  • Easy to maintain, been in use for over 50 years.

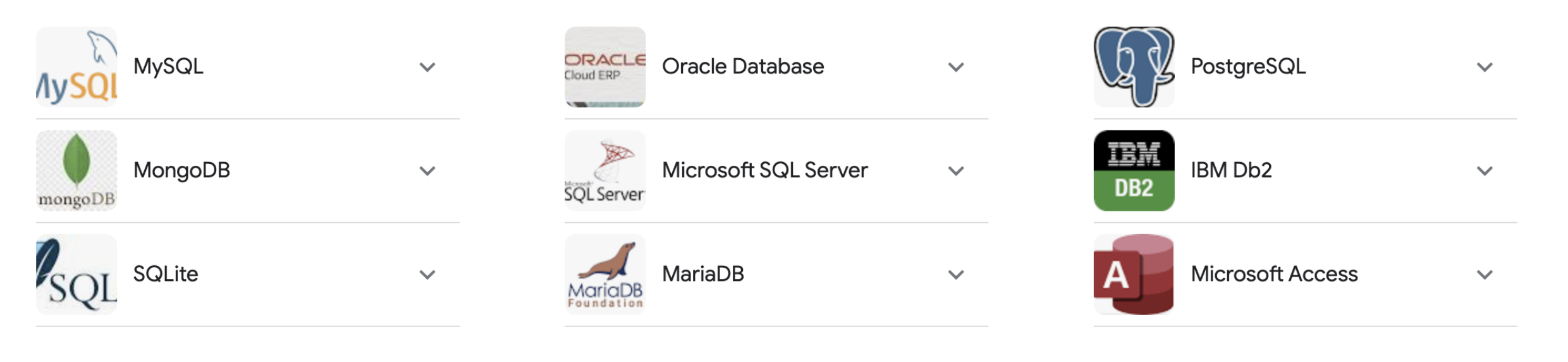

SQL Application Examples

Relational Database Model

🧩 Relational Database Model Parts

We divide the relational database model into three parts:

  • Data structure
  • Data integrity
  • Data manipulation

📌 Today we discuss data structure and data integrity.

📖 Core Definitions

We will consider the following definitions:

  1. Relation: table of columns and rows (“table”)
  2. Attribute: column of a relation
  3. Domain: allowable attribute values
  4. Tuple: row of a relation
  5. Keys (Super, Candidate, Primary, Foreign): identifiers

🧩 Relational Databases

A relational database is a collection of structured data organized into relations.

For example, see the table below:

Relations Example
StudentId FirstName Course#
S1 Remy PSTAT8
S1 Remy PSTAT131
S2 Sam PSTAT10
S3 Taylor PSTAT131
S4 Jordan PSTAT174

🔎 Interpretation

First Row
StudentId FirstName Course#
S1 Remy PSTAT8

From the first row we see that a student with ID S1, named Remy, is enrolled in PSTAT8.

  • What other information can we see?
  • What other course is Remy enrolled in?
  • Who does Remy share a course with?

🧩 Relations

Relations have the following properties:

  • Order is irrelevant;
  • Each row (tuple) must be unique;
  • Every relation must have a unique name; and
  • Relations can be updated (tuples added) as desired.

🧩 Relation Attributes

First Row
StudentId FirstName Course#
S1 Remy PSTAT8
  • The heading values are all attributes, i.e. StudentId, FirstName, Course#.
  • The attribute values are in the columns.
  • Rows are called tuples.
  • Structurally relations are very similar to data frames in R.

🌐 Domains and Tuples

The domain of a relation attribute is the set of atomic values used to model that attribute’s data.

  • Every relation attribute is linked to a domain.
  • For example, the domain for Course# would be PSTAT5A, PSTAT5LS, PSTAT8, PSTAT10, ...
  • Note that this is the set of all values a relation attribute can take — the values themselves do not have to be present in the relation.
  • The tuples are all of the non-header rows.

Keys

🔑 Keys

Keys are (subjectively) the most important structural component of the relational model.

A key is a set of attributes that determine the other attributes in each tuple, establish and identify links between relations, and set any required constraints on a database.

🔑 Super Keys

StudentId FirstName Course#
S1 Remy PSTAT8
S1 Remy PSTAT131
S2 Sam PSTAT10
S3 Taylor PSTAT131
S4 Jordan PSTAT174

A super key is a set of attributes uniquely identifying a tuple in a relation.

💪 Exercise — Super Keys

03:00
StudentId FirstName Course#
S1 Remy PSTAT8
S1 Remy PSTAT131
S2 Sam PSTAT10
S3 Taylor PSTAT131
S4 Jordan PSTAT174

Which of the following are super keys?

  1. (StudentId, FirstName, Course#)
  2. (StudentId, FirstName)
  3. (StudentId, Course#)
  4. (StudentId)

✅ Solution — Super Keys

StudentId FirstName Course#
S1 Remy PSTAT8
S1 Remy PSTAT131
S2 Sam PSTAT10
S3 Taylor PSTAT131
S4 Jordan PSTAT174

The following are both super keys:

  1. (StudentId, FirstName, Course#)
  2. (StudentId, Course#)
  • A super key must uniquely identify every tuple.
  • Remy (S1) appears in two rows, so (StudentId) and (StudentId, FirstName) are not super keys — they cannot tell those rows apart.
  • Adding Course# distinguishes the tuples, so any set containing it uniquely identifies a row.

🔑 Candidate Keys

StudentId FirstName Course#
S1 Remy PSTAT8
S1 Remy PSTAT131
S2 Sam PSTAT10
S3 Taylor PSTAT131
S4 Jordan PSTAT174

A candidate key is a unique tuple identifier (super key) with no redundancy.

Consider the previous example’s super keys:

{StudentId, FirstName, Course#} & {StudentId, Course#}

  • These two keys encode (effectively) the same information.
  • The FirstName attribute is redundant; both attribute sets point to the same tuple.
  • Only {StudentId, Course#} is a candidate key.

🔑 Primary Keys

A primary key is a set of attributes that uniquely identifies any tuple in a given relation.

  • Each relation has one primary key, selected from the candidate keys.
  • The primary key is chosen to minimize the number of attributes.
  • Primary keys cannot be duplicated, i.e. the same primary key cannot refer to multiple relations.
  • Primary key values cannot be null.

📌 In our previous example {StudentId, Course#} was the primary key for ENROLLMENT.

🔑 Foreign Keys

A foreign key is a set of attributes that links attributes across relations.

  • Specifically: given two relations R1 and R2, the foreign key links attributes from R1 to those in R2.
  • This is not intuitive — we will look at an example.

Before we do though, think about why foreign keys might be useful?

  • When would we want to link relations?
  • What sort of structure does a relational DB take?

🔑 Example — Foreign Keys

STUDENT Relation
StudentId FirstName
S1 Remy
S2 Sam
S3 Taylor
S4 Jordan

Primary Key: {StudentId}

GPA Relation
StudentId GPA
S1 3.81
S2 3.97
S3 3.02
S4 2.79

Primary Key: {StudentId, GPA}

Foreign Key: {StudentId}

🔑 Key Summary

The structure of keys may remind you of the basics of set theory:

  • Super Keys contain Candidate Keys.
  • Candidate Keys contain Primary Keys.

Written in the language of set theory we have that:

\[ \{\text{Super Keys}\}\supset \{\text{Candidate Keys}\}\supset \{\text{Primary Keys}\} \]

Foreign keys link relations together.

Data Integrity

🔒 Data Integrity

The first portion of this lecture was focused on data structure, i.e.:

  • Organization of databases; and
  • Technical vocabulary.

The next portion focuses on data integrity:

  • The rules all relational databases must obey.
  • Requirements to ensure consistency and completeness.
  • Integrity rules:
    1. Entity
    2. Referential

🔒 Entity Integrity

A relation has entity integrity when its primary keys are unique and have values that are unique and not NULL for every attribute (column).

📌 Entity integrity ensures we do not have (potential) duplicate tuples in a relation.

  • How would duplicates impact storage?
  • How would they impact accessing data?
  • How would they impact the role of primary keys?

🔒 Example — Entity Integrity

StudentId FirstName Course#
S1 Remy PSTAT8
S1 Remy PSTAT131
S2 Sam PSTAT10
S3 Taylor PSTAT131
S4 Jordan PSTAT174

Primary Key: {StudentId, Course#}

Suppose we want to add a new student named Sam who is enrolled in PSTAT174.

  • Could we do this?
  • If not, what would we still need?

🔗 Integrity Between Relations

We considered two types of keys:

  • Super Keys, Candidate Keys, Primary Keys (all referring to a single relation)
  • Foreign Keys (linking to multiple relations)

We think of integrity the same way:

  • Entity integrity dealt with individual relations.
  • Referential integrity constrains relations between relations.

🔗 Referential Integrity

Foreign keys can take two types of values:

  • They can be NULL.
  • They can correspond to a specific primary key.

Referential integrity ensures that we never attempt to reference a nonexistent tuple.

  • Allows for easy cross-referencing across relations.
  • Prevents calls to nonexistent data.

🔗 Example — Referential Integrity

CUSTOMER Relation
CUST_NO NAME Age
C1 Alex 21
C2 Charlie 26

Primary Key: {CUST_NO}

SALES_ORDER Relation
ORDER_NO DATE CUST_NO
011 6/11/23 C1
012 6/24/23 null
013 7/1/23 C3
015 7/12/23 C2

Foreign Key: {CUST_NO}

🔗 Example — Referential Integrity (Note)

Note the third tuple of the SALES_ORDER relation:

\[ \{013,~7/1/23,~C_3\}. \]

In customers, we have CUST_NO values:

\[ \{C_1, C_2\}. \]

📌 Thus referential integrity is violated — we reference a primary key value which does not exist.

💪 Exercise — Evaluating Integrity

04:00
ITEMS
Product Price ($) Category Manufacturer
Galaxy S23 899 Phones Samsung
null 829 Phones Apple
Macbook Air 1099 Laptops Apple
Fire TV 449 Televisions Amazon
ORDERS
Product Order_NO Cust_ID
Fire TV 1 CS1
Galaxy S23 2 CS11
Macbook Pro 3 CS11

We are given the tables above: ITEMS and ORDERS, with primary keys Product and Cust_ID.

  1. What is the foreign key in ORDERS?
  2. Is entity integrity violated? If so, how?
  3. Is referential integrity violated? If so, how?

✅ Solution — Evaluating Integrity

ITEMS
Product Price ($) Category Manufacturer
Galaxy S23 899 Phones Samsung
null 829 Phones Apple
Macbook Air 1099 Laptops Apple
Fire TV 449 Televisions Amazon
ORDERS
Product Order_NO Cust_ID
Fire TV 1 CS1
Galaxy S23 2 CS11
Macbook Pro 3 CS11
  1. Product
  2. Yes; entity integrity fails — null primary key in ITEMS → Product.
  3. Yes; referential integrity fails — Macbook Pro in ORDERS → Product has no matching tuple.

Schema

📐 Relation Schema

The relation schema is the relation name and its attributes.

StudentId FirstName Course#
S1 Remy PSTAT8
S1 Remy PSTAT131
S2 Sam PSTAT10
S3 Taylor PSTAT131
S4 Jordan PSTAT174

Schema: Enrollment {StudentId, FirstName, Course#}

  • Conventionally, the primary key would be indicated in some fashion.
  • Recall that the primary key here was the pair {StudentId, Course#}; this type of key is known as a composite key.

📐 Database Schema

The database schema is the set of all relation schema in a database.

  • New relations can be added at any point.
  • New relations must conform to integrity constraints.

For example, the earlier STUDENT and GPA relations together form a database schema:

\[ \texttt{Student \{StudentId, FirstName\}},\quad \texttt{GPA \{StudentId, GPA\}}. \]

📌 The database schema records both the relations and the keys that link them.

Summary

✅ Topics Covered

🙌 This lecture we introduced ourselves to databases, specifically:

  • The relational database model
  • Keys
  • Data Integrity; and
  • Schema

📅 Next Class

👉 Next class we will discuss accessing and modifying databases.

  • The database schema will form a core reference tool.
  • We will often discuss database schema theoretically.
